Description
Parameter
| Machine Dimensions(mm) | 2340*1920*1980 |
| Operating Platform Height (mm) | Infeed Height：750±50mm Outfeed Height：850±50mm |
| Applicable Packaging WxH (mm) | Length：100-260 * Width：70-210 * Heigth：30-150 |
| Capacity (m/min) | 18-25 |
| Power Supply | 9.5KW |
| Compressed Air Source | 0.6-0.8Mpa |
| Air Consumption（m²/min） | 1.2 |
| Applicable Packaging Film | Cross-link Film POF,0.019mm |
| Sealing Blade Temperature | 150°-230° |
| Packaging Success Rate | ＞98％ |
| Equipment Failure Rate | ≤1.5% |
| Controlling System | PLC+HMI |
Application
1.Consumer Electronics
2.Cosmetics
3.Health Products
4.Snacks & Nibbles
Features
1.Bag-making utilizes cross-link POF shrink film, which offers high transparency, excellent gloss, and a high shrinkage rate. After heat shrinking, it clearly displays the product’s appearance, enhancing the impression on customers and product grade.

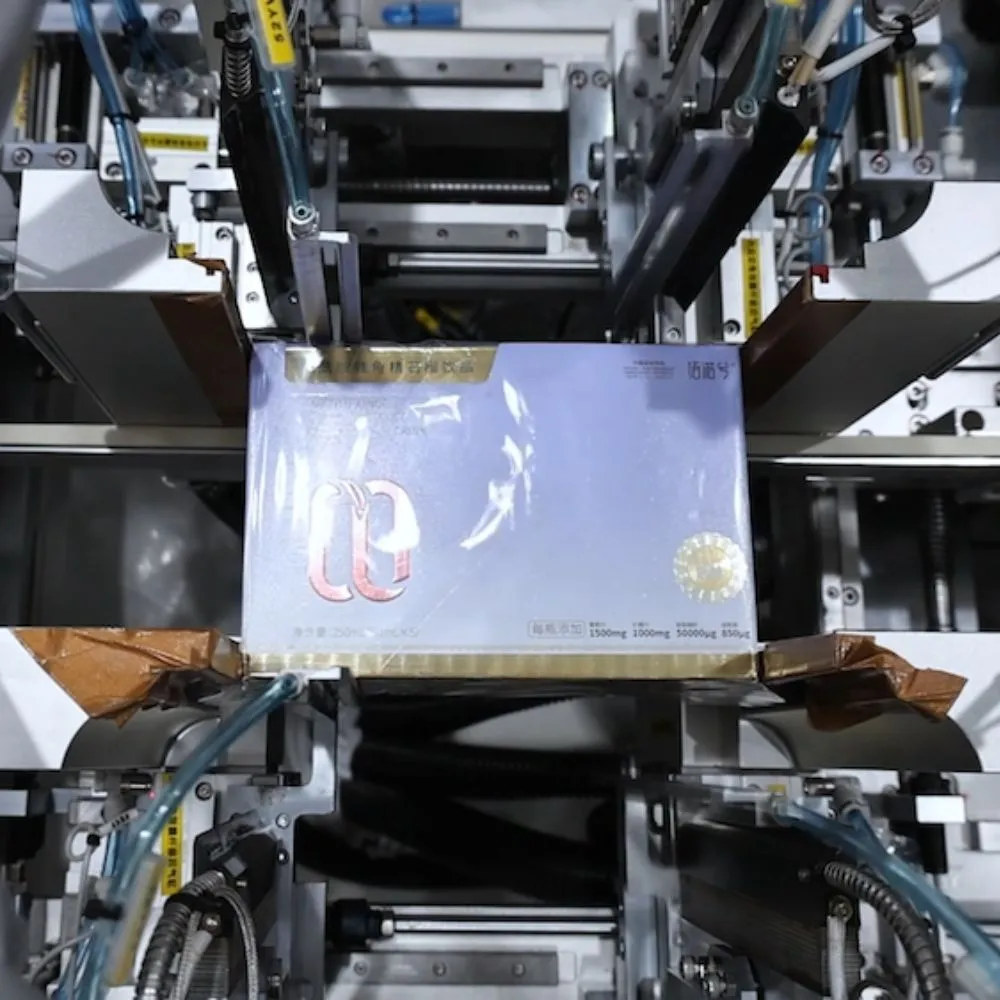

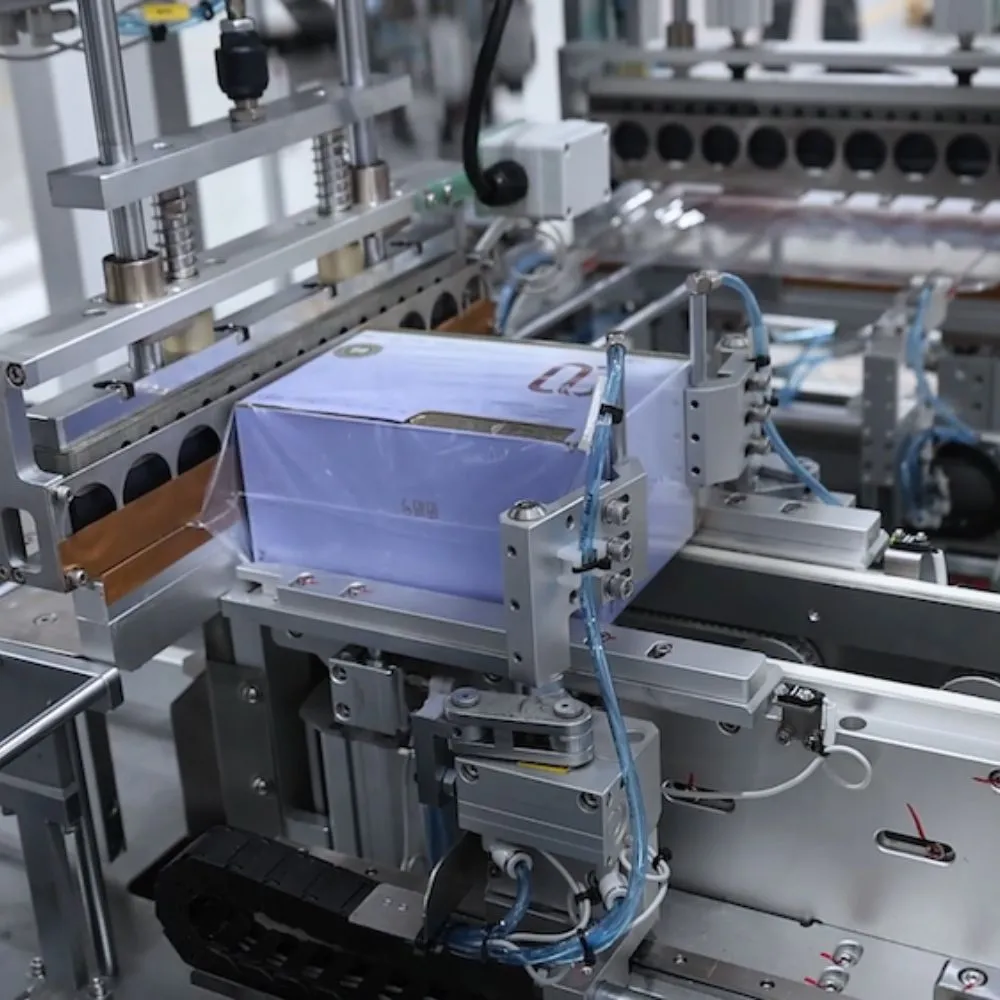

2.Precisely cuts off the film margin at the four corners, significantly reducing production costs. The seal line is centered and straight, without bulging or overlap, achieving perfect packaging results. This directly addresses the pain points of traditional heat sealing and shrinking solutions, such as severe material waste and flawed finishing.
3.The equipment boasts versatility and one-touch product switching through servo-driven position parameter adjustment and manual adjustment of the film-pulling rods.
4.Dual-bagging stations can meet customer’s requirements both for efficiency
