Description
Parameter
| Model | GT-6030Z |
| Machine Dimension (mm) | 2044x1478x1836 |
| Max Packing Size (mm) L-∞ | Unlimited |
| Max Packing Size (mm)(W+H) | 650 |
| Sealing Blade Length (mm) | 750 |
| Max Film Width(mm) | 700 |
| Packing Capacity（ppm） | 10-20 |
| Power Source | 3Ph 220/380V 50/60Hz |
| Power (Kw) | 2.5 |
| Air Consumption (Ni/min) | 80(6-8bars) |
| Applicable Film | PE |
Application
Suitable for cuff packed box products and products with trays.
Features
1.HMI easy to operate and parameter setting are concise and clear.

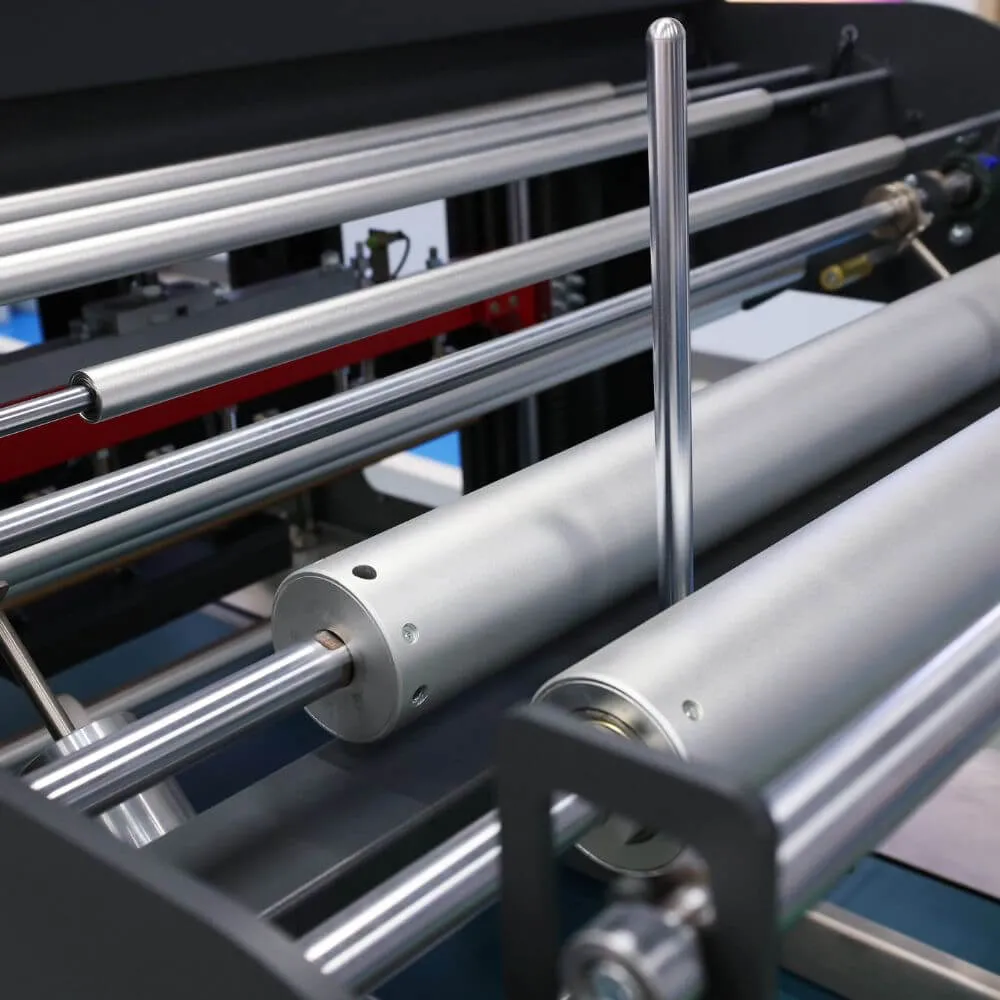

2.Ergonomic design ensures safe and quick replacement of the membrane roll.
3.The conveyor is controlled by a frequency converter,and a servo sealing and cutting configuration can also be optionally installed to meet the customer’s requirements for speed.
4.The sealing is firm .It’s designed according to the customer’s requirement,the sealing line can be in the middle or at the bottom.
5.The height and width of the sealing and cutting can be customized non-standard according to the product requirements.
