Every food and beverage factory wants beautiful packaging. When customers look at your drinks, food boxes, or gift sets on the shelf, the plastic wrap is the first thing they see. If the film has wrinkles, big holes, or loose corners, your product looks cheap. Customers will think the quality inside is bad too.
For a long time, many factory managers had a big problem. They bought low-quality equipment and ran it every day. But the results were bad. They wasted many rolls of film. They spent too much time fixing packaging errors.
If you want a smooth, clear, and high-gloss look on your products, you do not need lucky guesses. You need a machine that gives you total control over heat, air, and speed. The GT-M5030LW Shrink wrapping machinery is engineered specifically to solve these problems and make your products look premium.
Watch and Fix Errors Live with the Observation Window
Old-style tunnels look like a closed metal box. You put the product in, you wait, and you see the result at the other end. This is what we call “blind shrinking.” It is a terrible way to work because if something goes wrong inside the tunnel, you cannot see it.
For example, if the temperature is too high, the film might melt and burn. If you cannot see inside, the machine will keep burning hundreds of products until they come out of the exit. This wastes a lot of money and time.

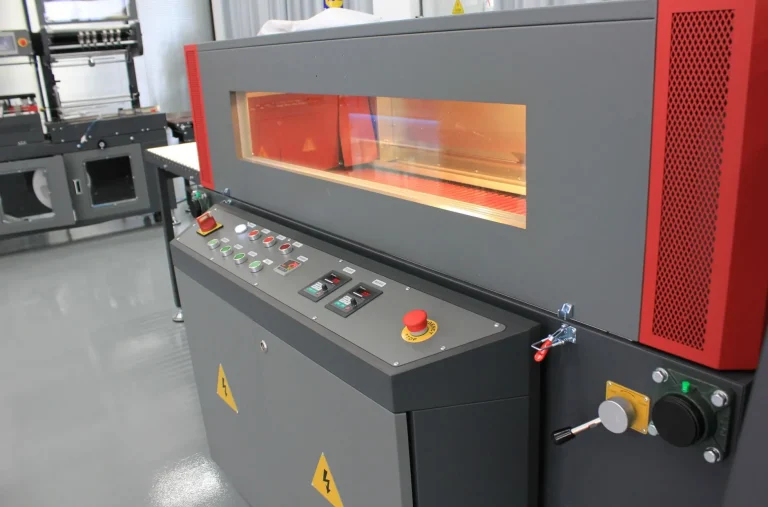

The GT-M5030LW Shrink wrapping machinery fixes this issue with a big, clear glass observation window on the side of the heat chamber. This changes everything.
Technicians can look inside the machine while it is running. You can watch the film react to the heat in real time. If you see the film ballooning too late, or if you see small wrinkles starting on the side of a box, you can adjust the settings right away. You do not need to stop the line. This saves film and keeps your production running fast.
Micro-Adjust Air and Speed to Stop Burn-Throughs
Some people think that if the film is loose, they just need to turn up the temperature. This is a big mistake. Higher heat often just burns the film. To get a perfect pack without holes, you must control two things separately: conveyor speed and airflow volume.
The GT-M5030LW Shrink wrapping machinery uses two independent frequency converters to control these two variables effortlessly.
Conveyor Speed Control: This controls how many seconds the product stays inside the hot tunnel (residence time). If you wrap light paper boxes with thin POF film, the speed should be fast. If the product stays in too long, the heat will damage the box graphics or melt the film.
Airflow Volume Control: This controls how hard the wind blows inside the tunnel. If you are wrapping a light, empty plastic tub, a strong wind will flip the product over before the film can shrink. You need low wind but correct heat. If you are wrapping cold, heavy juice bottles, they absorb a lot of heat. You need a very strong wind to push the heat into the corners.
By adjusting the belt speed and the fan speed separately with the GT-M5030LW, you can find the perfect settings for thin POF films without risking thermal damage.
All-Around Air Flow Eliminates “Dog-Ears”
Even if your speed and temperature are right, bad air direction will still ruin your pack. Basic tunnels only blow hot air from the top. When hot air hits the top first, the top film shrinks too fast. It pulls the rest of the film upward. This leaves loose, saggy plastic at the bottom corners. In the packaging industry, we call these ugly corners “dog-ears.”
The GT-M5030LW Shrink wrapping machinery uses an innovative air design to stop this problem. It sends hot air from both the bottom and the sides at the exact same time.
When the product moves through the GT-M5030LW tunnel, the film contracts evenly from all angles. The bottom seal line becomes flat and clean. There are no wrinkles, no loose flaps, and no dog-ears. Your product looks like it was wrapped by a high-end luxury brand.
Solid-State Relays for Stable Heat
Older generations of packaging machinery use mechanical contactors to turn the heaters on and off. These mechanical switches are slow. Because they take a few seconds to react, the temperature inside the tunnel goes up and down like a zigzag line. This temperature swinging makes the shrink quality very inconsistent, leading to wrinkles on one pack and burn holes on the next.
The GT-M5030LW Shrink wrapping machinery uses Solid-State Relays (SSRs) instead. SSRs have no moving parts and react in microseconds. Working with a digital controller, they keep the heat com.
